NK180 HD Electric Kayak Motor

$1,299.99

The NK HD Series represents the next generation of Newport’s flagship kayak motors. Built around a Heavy Duty durability standard, the NK180 HD and NK300 HD integrate reinforced steering, a redesigned retract system, and an upgraded HD communication connector as standard equipment. Designed specifically for kayak anglers, the HD Series delivers reliable brushless performance without compromise. This is a motor platform built for long days on the water, where confidence matters more than features on a spec sheet.

Features
  • Most versatile NK HD (1.8HP/600W)
  • Reinforced steering/retract system
  • HD communication cable connectors
  • Brushless direct drive
  • Newport battery system compatibility
  • Compact anodized Ronstan® block
  • Cable strain relief mechanism
  • Conformal-coated electronics
What's In The Box?
  • NK180 HD motor

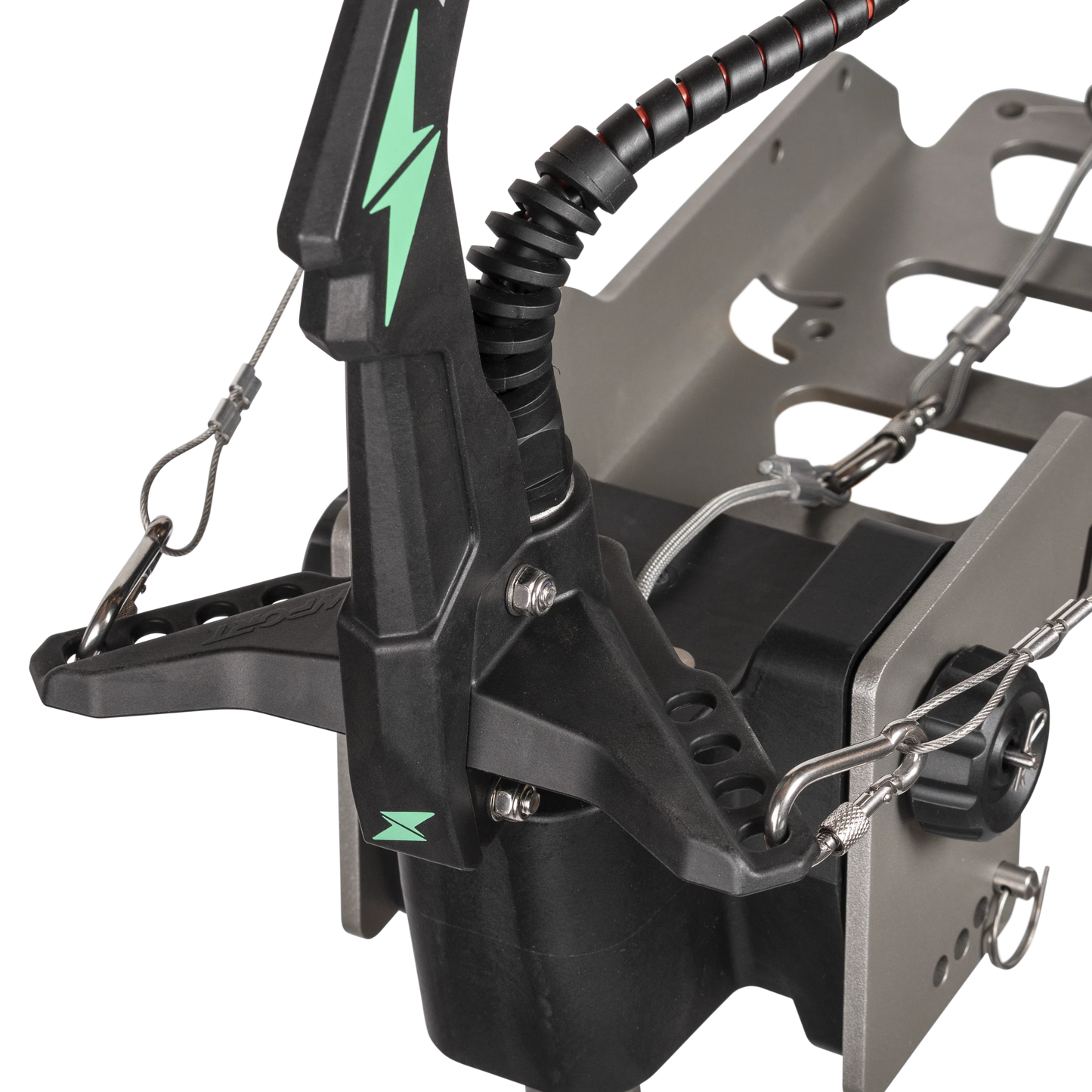

  • NK HD Steering Triangle
  • NK HD Retract Arm w/ Stainless Carabiner + Ronstan micro block
  • NK HD Communication Cable with oversized M12 connectors
  • NK HD Digital Speed Controller w/ Display
  • Four Bolt Aluminum Motor Mounting bracket
  • Height Adjustment Clamp
  • Reverse Control Line and Handle
  • Motor Lift Control Line and Handle
  • Emergency Stop Key
  • (2) Carabiner and pulley sets for rigging options
  • Additional nylon cord
  • Coated Stainless Steering Cable Kit (may not be compatible w/ every brand of kayak)
    Installation Kit
  • Hardware installation kit with required tools
  • BATTERY NOT INCLUDED
Specs

Power: 600W (1.8 HP Equivalent)
Input Voltage: 24V
Amp Draw: 25 AMPS
Weight: 14.3 lbs
Shaft Length: 21.7"
External Battery: Yes
Propeller: 7.5"
Trim/ Tilt Angle: 10°, 20°, 30°
Motor: Brushless DC Motor
Direct Drive: Yes
Maintenance Free: Yes
Lower Motor Length: 8.7"
Lower Motor Size: 4"
